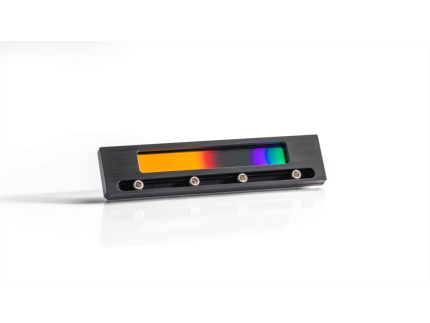

可變式濾光片 Linear Variable Filters (LVFs)
LVFs are handy tools for any optical experiment where high-pass, low-pass or bandpass filters are required. The filters are epoxied into slide carriers so you can move the transmission or blocking band through each filter’s wavelength range. LVFs are avai
- 產品說明 (點擊展開觀看)
-
Item Description LVF-H A single high-pass filter for 300-750 nm LVF-L A single low-pass filter for 300-750 nm LVF-HH Two LVF-H high-pass filters epoxied together for 300-750 nm LVF-LL Two LVF-L low-pass filters epoxied together for 300-750 nm LVF-HL An LVF-H high-pass filter and LVF-L low-pass filter fastened together to create an adjustable bandpass linear variable filter LVF-UV-H A single high-pass filter for 230-500 nm LVF-UV-L A single low-pass filter for 230-500 nm LVF-UV-HH Two LVF-UV-H high-pass filters epoxied together for 230-500 nm LVF-UV-LL Two LVF-UV-L low-pass filters epoxied together for 230-500 nm LVF-UV-HL An LVF-UV-H high-pass filter and LVF-UV-L low-pass filter fastened together to create an adjustable bandpass linear variable filter LVF-CUV-ADP Adapter for use with cuvette holders, to clamp filter slides into place CVD-DIFFUSE Teflon diffuser for cuvette holder-LVF setups, to redirect excitation energy to spectrometer FHS-LVF In-line system with two collimating lenses that accommodates slide carriers for straight-through (absorbance/transmission)
measurementsLVF-KIT
Consists of the LVF-HL, LVF-CUV-ADP, FHS-LVF, and CVD-Diffuse LVF-UV-KIT Consists of the LVF-UV-HL, LVF-CUV-ADP, FHS-LVF and CVD-Diffuse
